Components

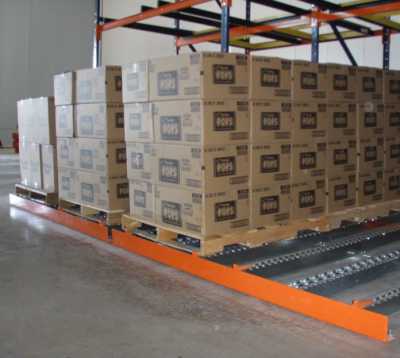

Series 19

Steel Wheel Rail

• Wheel Diameter: 1.9”
• Wheel Capacity: 100lbs or more
• Wheel Spacing: 1-1/2” Double Staggered, 2” Single Row, 3” Single Row

DeepFlo^® Series 19 Components are pre-lubricated and require no maintenance.

---

Series 20

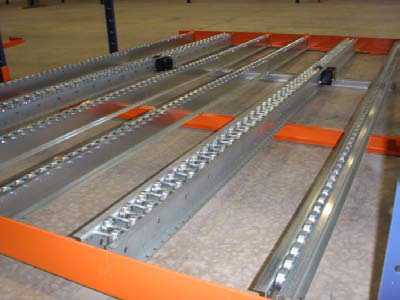

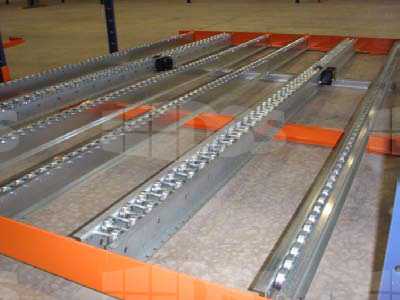

Speed Controller

The number of controllers required under each pallet depends on these criteria:

• Pallet weight
• Bottom boards surface
• Type of bottom boards (hard surface or soft wood)
• Bottom board thickness

DeepFlo^® Speed Controllers control acceleration and ensure loads are conveyed safely. Each unit is pre-lubricated and requires no maintenance.

Speed Controllers can be mounted in a direct or indirect mounting configuration. Units are self-powered and require no electric or air source.

---

Series 30

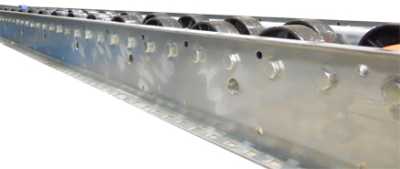

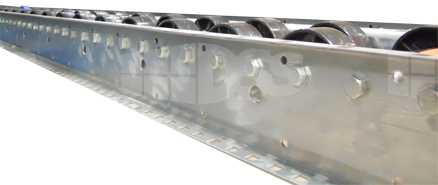

Standard DeepFlo^® Rail

• Wheel Diameter: 2.9"
• Wheel Capacity: 350lbs. or more
• Rail B.F. (between frame)
  • Single Row @ 1.44"
  • Double Row @ 3.0"
  • Double Row @ 5.0"
• Wheel Spacing: 2" Double Staggered
  • 2" Single Row
  • 3" Single Row

DeepFlo^® wheels are supplied to fit your application.

Some applications demand a rugged solution. DSS HD Wheels can then be placed at the entry/discharge positions to meet "heavy duty" requirements.

---

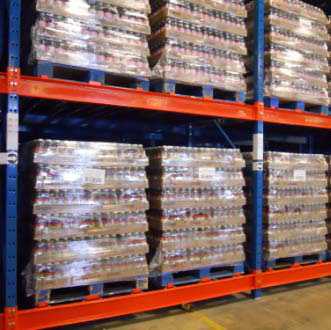

Series 30

MultiTrak Roller Rail

• Roller Diameter: 1.9"
• Roller Length: 5" to 12"
• Roller Capacity: 600lbs max.
• Roller Spacing: 2" and up
• Available with a seal
• Plated shafts can be supplied for wash-down applications

DeepFlo^® Series 30 MultiTrak Roller Rails are a medium-duty rail designed for pallets with up to 2500 lb. loads. We supply individual roller components as well as Series 30 flow rails to add to any DeepFlo^® Series 30 system.

---

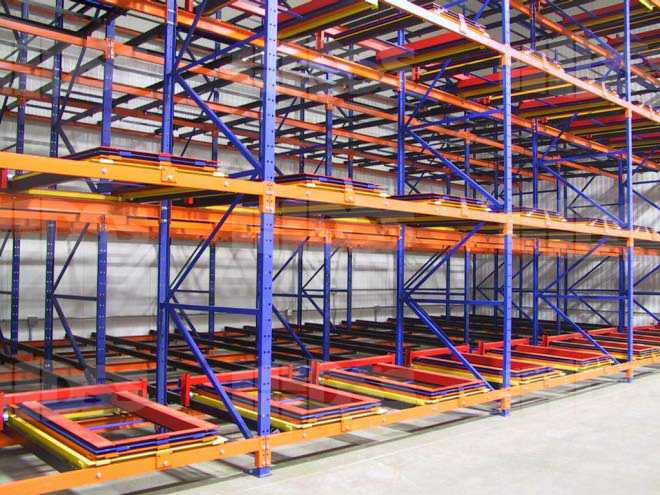

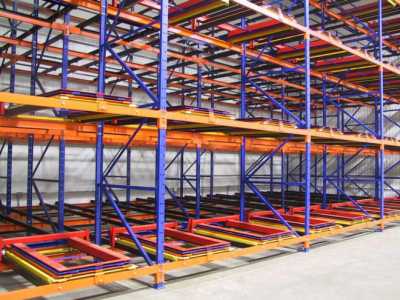

Series 50

Pushback Cart

• Two-deep through six-deep
• Rack and floor supported

DeepFlo^® Series 50 Pushback Cart Systems are ideal for Last-In First-Outsystems. This system allows one to store two to six pallets deep in LIFO configuration. The product in the back is stored on a special cart that pushes forward the products flush with the front as you add items. This system can increase the efficiency of a LIFO system by as much as 75%.

---

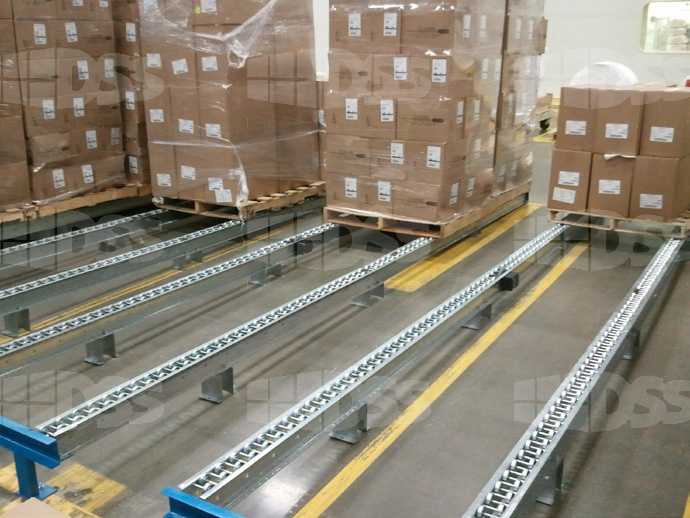

Series 50F

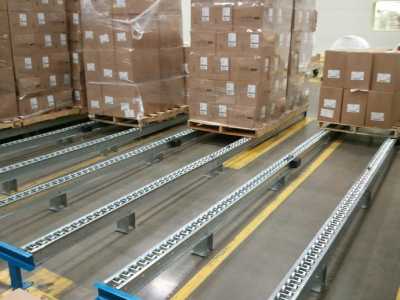

Pushback Flo

• Two-deep through six-deep
• Rack and floor supported

Series 50F Pushback Flo - uses DeepFlo^® storage technology instead of carts. Series 50F utilizes flow through components to storage pallets in a LIFO configuration. This system allows you to store two to six pallets deep in a LIFO configuration using the absolute minimum vertical clearance between levels.

---

Series 70

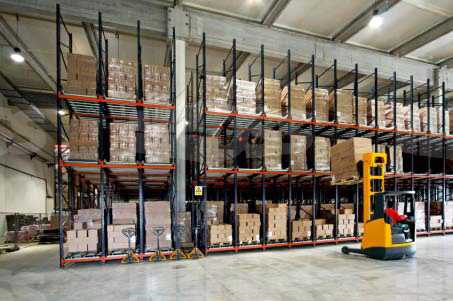

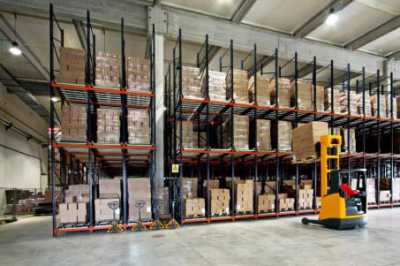

Full Width Roller

• Roller Diameter: 1.9" and 2.5"
• Typically, 40" bf through 60" bf
• Roller Capacity: 600lbs max.
• Roller Spacing: 2" and up

DeepFlo^® Series 70 Full Width Roller Rail Systems allow for the storage of variable size/weight items on the same rack. We supply roller components and rack components for constructing or repairing Series 70 systems.

---

Series 90

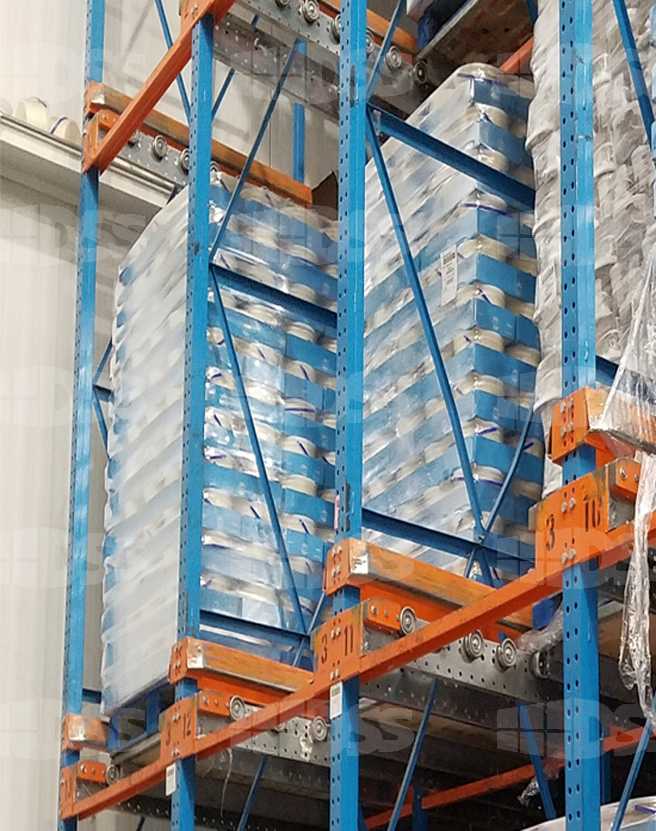

"Z" Rail – Captive Pallet Rail

• Wheel Diameter: 2.9"
• Wheel Capacity: 350lbs or more
• Wheel Spacing: 2" single row and up in 2" increments

DeepFlo^® Series 90 ‘Z’ Rail Captive Pallet flow systems are ideal for flexible flow systems with variable weight loads and minimize your maintenance costs over time. ‘Z’ Rails are used to augment the geometry of your flow system to allow intersecting rails and vertical flow systems.

---

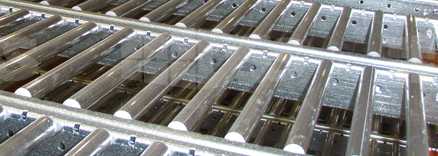

DeepTrak^™

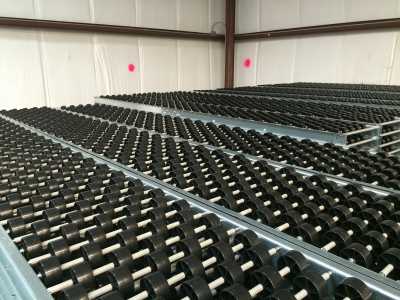

Carton Flow Track

• Roller Diameter: 3/4"
• Roller Length: 6", 9", 12" and 15"
• Roller Capacity: 50lbs max.
• Roller Spacing: 1" and up in 1" increments

DeepTrak Carton Flow is specifically designed to accommodate all types of products. When incorporated in a complete system, DeepTrak Carton Flow is capable of storing different weights and sizes in the same system.

---
